Onboarding takes no more than five minutes, so let's go! 💥
The adapter is compatible with 99% types of lab microscopes
Attach your iPhone to the eyepiece of a microscope. Put the sample, turn on the light, set the lens focus.
- Let's check the app settings - push the gear icon in the right bottom corner to open the menu. If you're using the LabCam Pro adapter (older version), set the Adapter = LabCam Pro. Leave the other settings as they are. Tap the main screen to return.

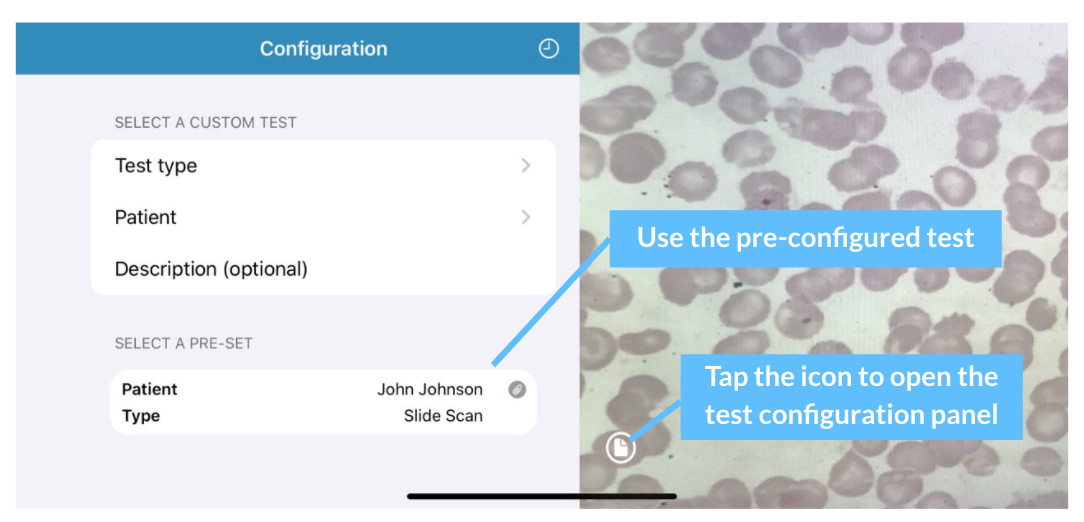

- Next step - set the test type. Open the test configuration panel (left bottom corner). Tap on the pre-configured test.
Test configuration panel

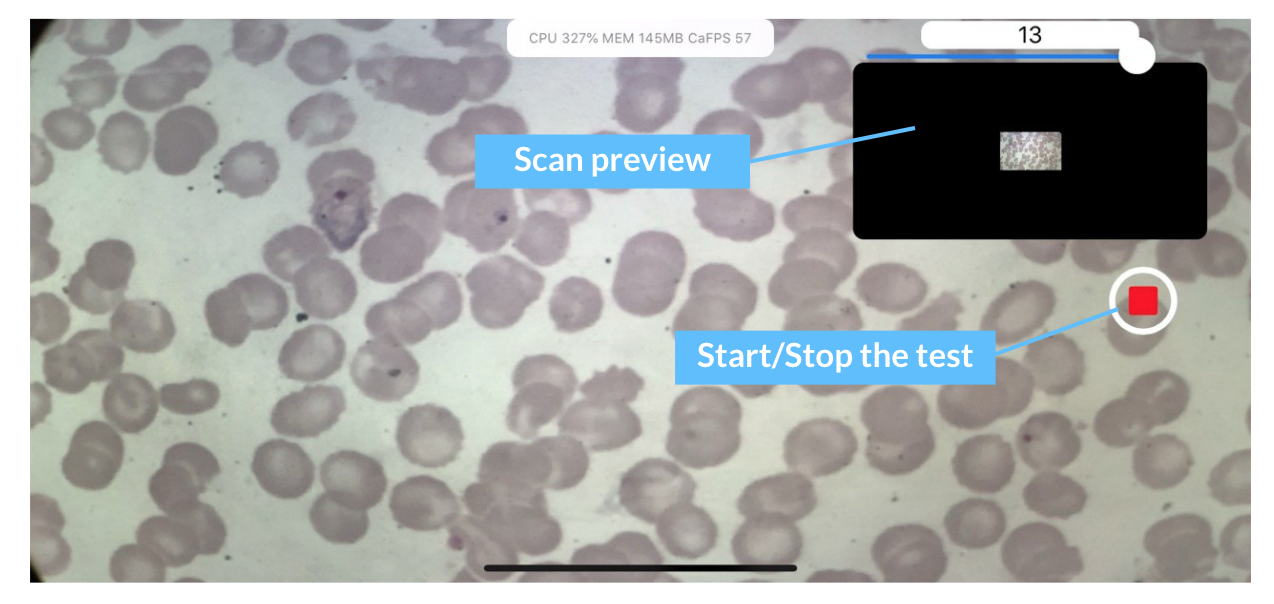

- Start your test using the Red Record ButtonScan a few fields of view and finish the test (Stop button -> Complete).🔴
You can turn on scan preview in the App settings
List of the tests

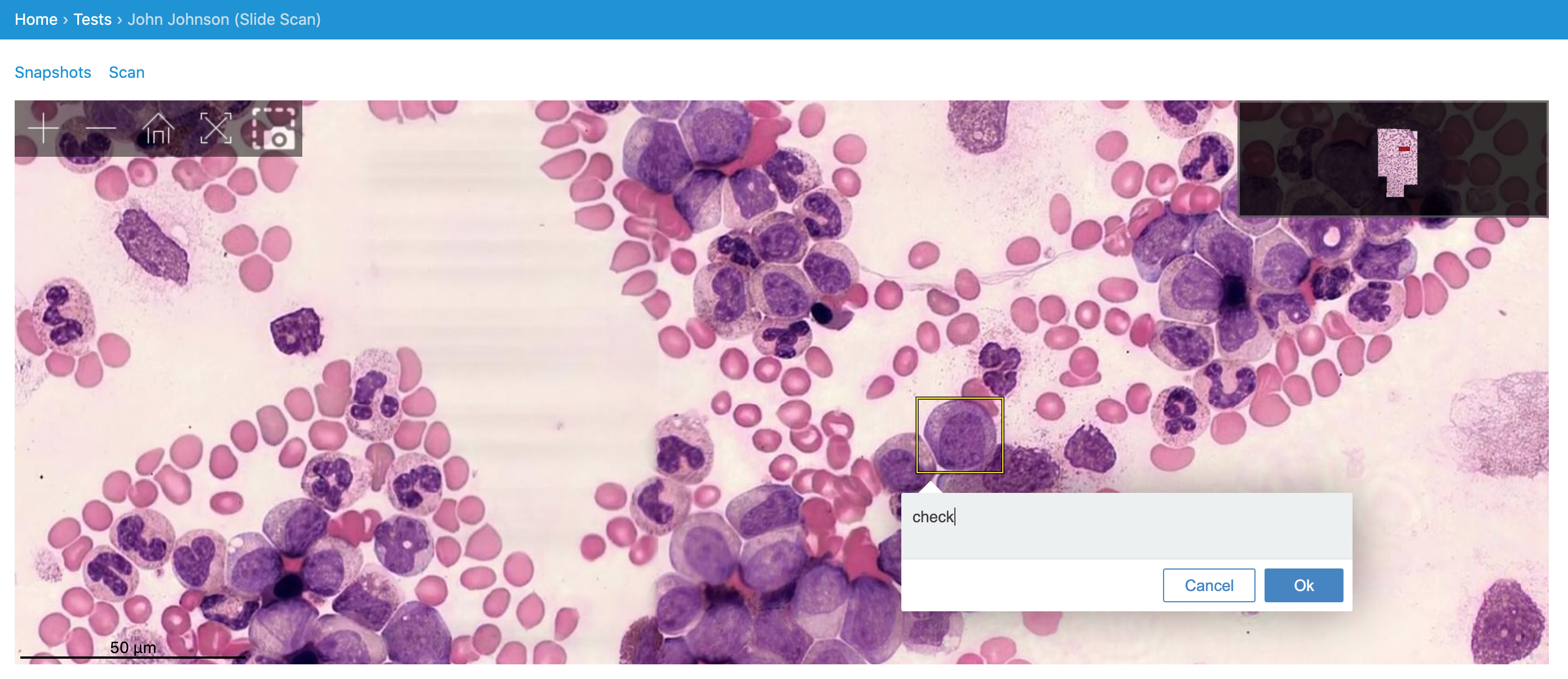

- Select the Scan tab. On the web panel, you can change zoom level, make snapshots and add annotations
Scan view page
Now you know the basics, but there is so much more to explore! AI-automation, LIS integration, team management, and even more.
A nice idea would be to learn how to automate WBC-differential test:
